Technology: True Online Double Conversion Transformer-based UPS
Size: 15 000VA
Input/output Voltage: 400V/230V
Design: Tower
Power Factor: 0.8
Battery: External 192VDC
Software: Intelligent

Category:

INTRODUCTION

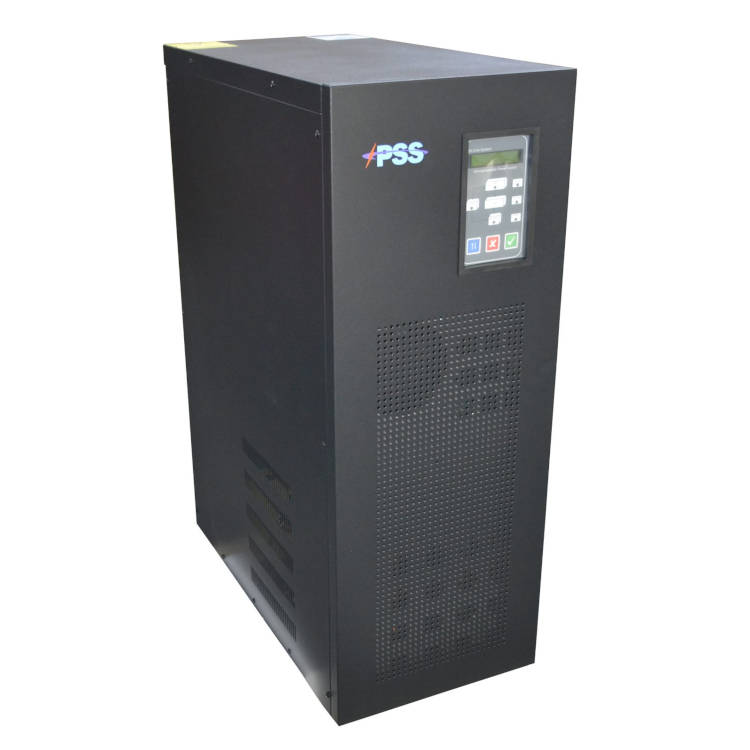

The EPI Series transformer-based on-line Double Conversion UPS’s are best known for their durability and performance. When sized correctly, these units are able to drive motors, air conditioners, copiers and large networks as well as provide the ultimate protection against surges, dips, blackouts and lightning. With a lifespan of over 15 years, see this as an investment for your company.

APPLICATION
Mission Critical Processes, Computer Rooms, Networking Equipment, SOHO, Servers, Industry Equipment, Medical Equipment or Other Critical Systems

FEATURES

  • Three phase in, one phase-out
  • True on-line double conversion design providing full power protection
  • IGBT inverter design
  • Wide input voltage window
  • Pure sine wave output less than 3% THD
  • Expandable battery run time
  • Generator compatible
  • Cold start
  • Load/Battery power meter display
  • Overload, on-line, battery status

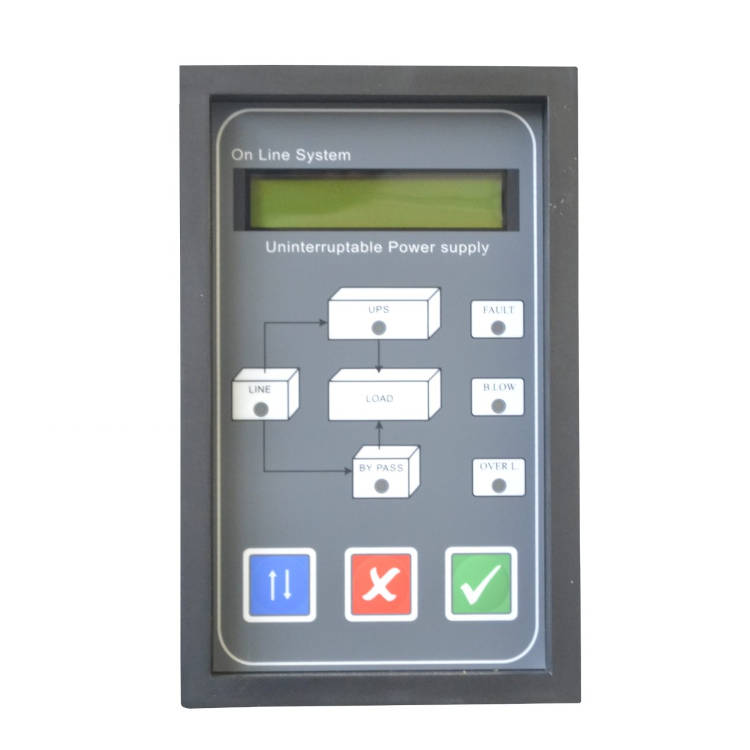

  • LED/LCD display
  • Advanced Battery Management
  • Automatic charging in UPS off mode
  • Smart RS-232 communication port
  • Parallel capability

What’s in the Box

  • 1 x UPS
  • Manual
  • Software
  • Serial Cable

Dimensions:

542 X 934 X 1350 (W-D-H)mm  210kg











Additional information

Weight 210 kg
Dimensions 54.2 × 93.4 × 135.0 mm
