Technology: Online UPS
Size: 60 000VA
Input/output Voltage: 400V/400V

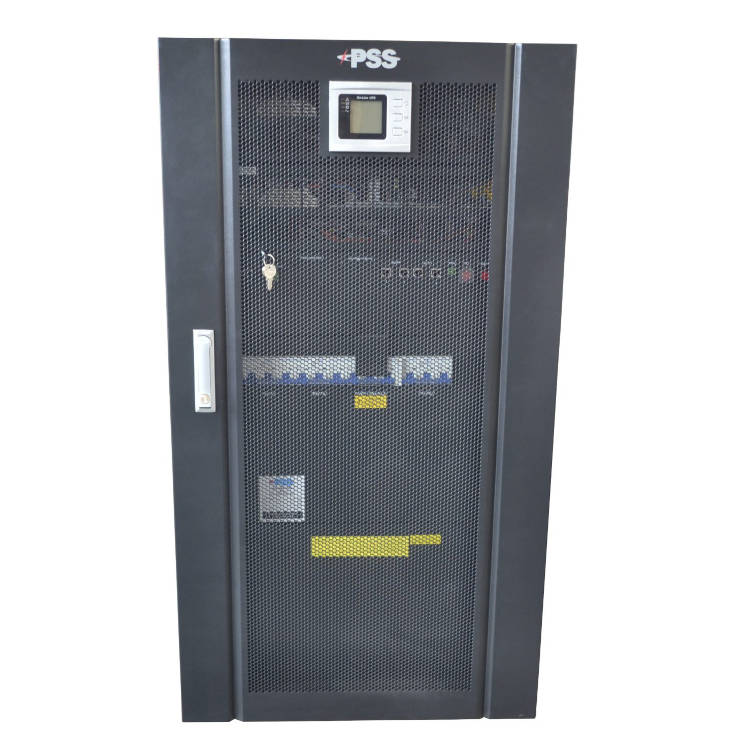

Design: Tower
Power Factor: 0.8
Battery: External 32/36/40 Batteries
Software: Intelligent

Category:

INTRODUCTION
The HIP Series UPS is a versatile system for any large server, data, or telecommunication room environment. These units have a unity input power factor with various battery backup options which are programmable from the front panel. Compact in design, the series takes up minimum space and allows the engineer to monitor all power conditions via computer or network(optional).

APPLICATION
Data centres, Server rooms, Telecommunication, Medical Centres, Security Industry

FEATURES

  • Three phase in, three phase-out
  • DSP controlled technology

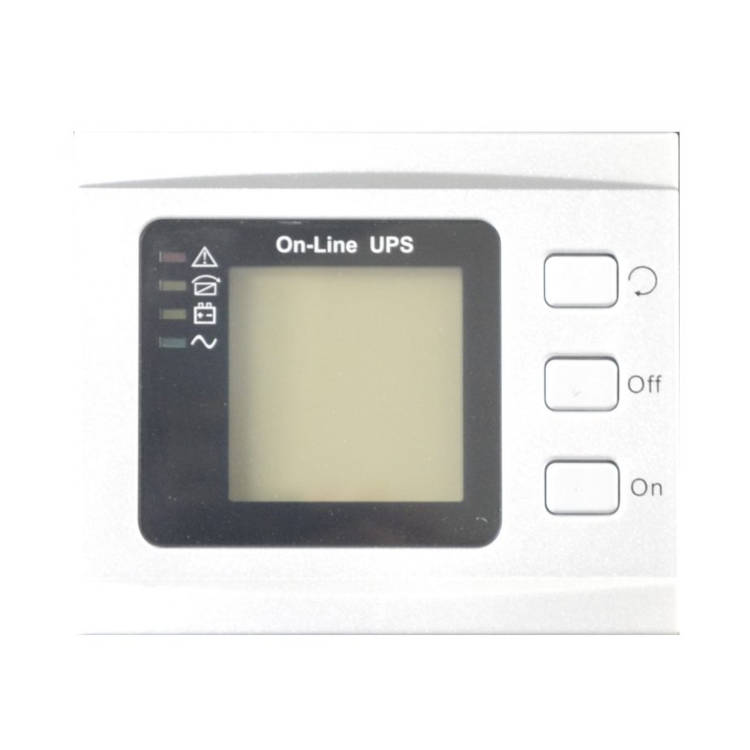

  • Easy operational LCD display
  • Compact design
  • Wide input voltage and frequency windows
  • Programmable battery voltage
  • Powerful charger
  • Intelligent charge modes with smart charge current adjustment
  • Monitoring software
  • Parallel redundant up to 4 units
  • ECO mode for energy saving
  • Unity power factor low input distortion
  • Versatile communication interface

Superior overload capability

What’s in the Box

  • 1 x UPS
  • Manual
  • Software
  • Serial Cable

Dimensions:

910 X 730 X 1410 (W-D-H)mm  231kg



Additional information

Weight 231 kg
Dimensions 91.0 × 73.0 × 141.0 mm
